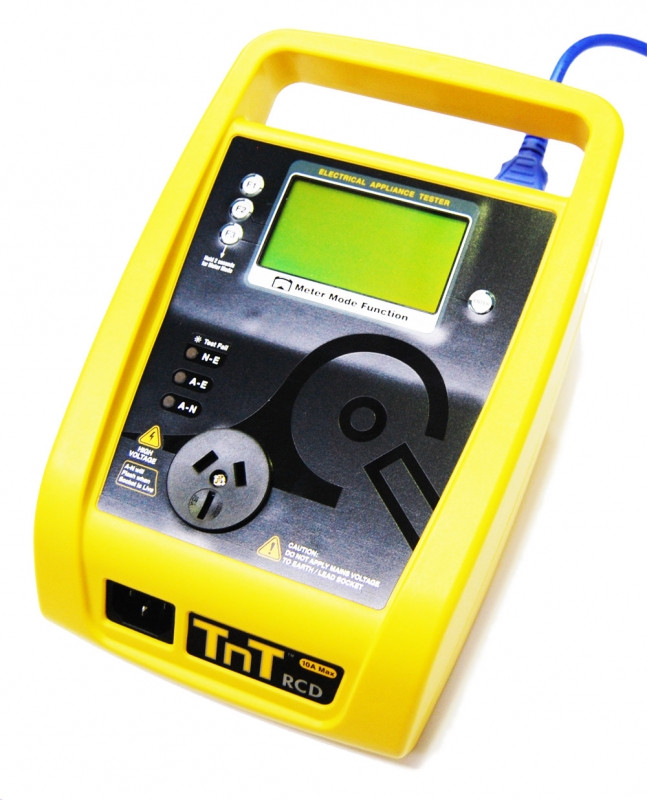

Wavecom Gen4 TNT RCD
call our customer service or send us an e-mail.
The all new Generation TNT RCD is practically the same breed as the Wavecom TNT -el, but has the added capability of testing fixed and portable RCD's.

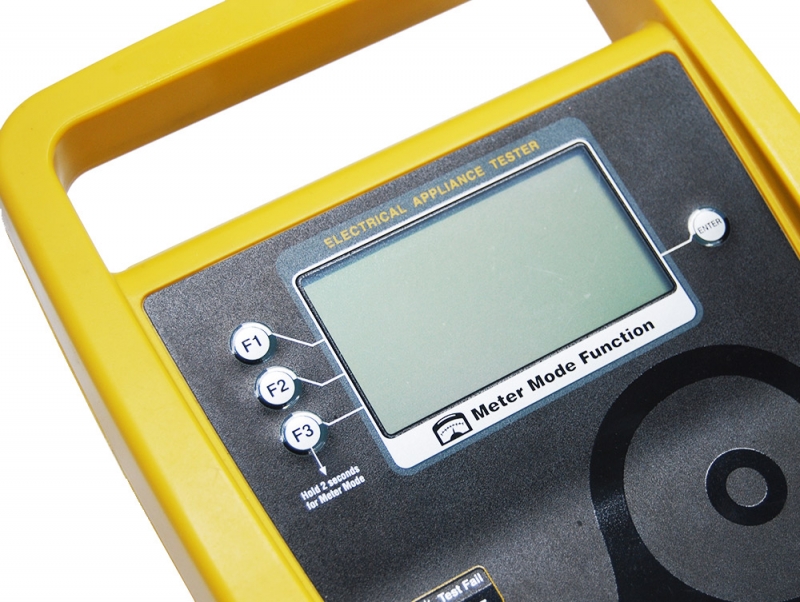

It's extremely easy to navigate through the various tests and is as simple as pressing 'F1' for Class I tests and 'F2' for Class II tests.
Like all the other Gen 4 TNT models, it comes standard with the Meter Mode function which allows you to display volts, amps, true power and reactive power of an individual appliance. It'll also test sensitive electronic equipment which can't be tested using a standard insulation tester.
Features
- Test's fixed and portable RCD's
- Unit displays actual test readings in large font
- PASS/FAIL indicator
- One button testing
- Unique Meter Mode function
- Processor firmware factory updateable
- Built-in carry handle
Accessories
240V Extension lead, Adaptor, Manual, Earth bond lead & Calibration Certificate
-
2 Years
-
Class 1 Pass ≤ 5 MA RMS
Class 2 Pass ≤ 1 MA RMS -
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp -
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Apparent Power: 0 To 2400VA
Power: 0 To 2400W -
Settable Trip, 2 - 500 MA ± <2.5% Of Valve
Trip Time, 0 - 300 MS ± <1 MS -
Current 200mA DC
Pass Limit < 1.0Ω -
Case: Impact Resistant, Flame Retartant
Size: 170W X 225L X 110H -
500v, 250V Selectable
-
1.3kg
-
230 VAC - 260 VAC. 3W. 50hZ
-
CAT III 300V
Internal Fuse Protected 1A
DUT Test Protected At 10A
