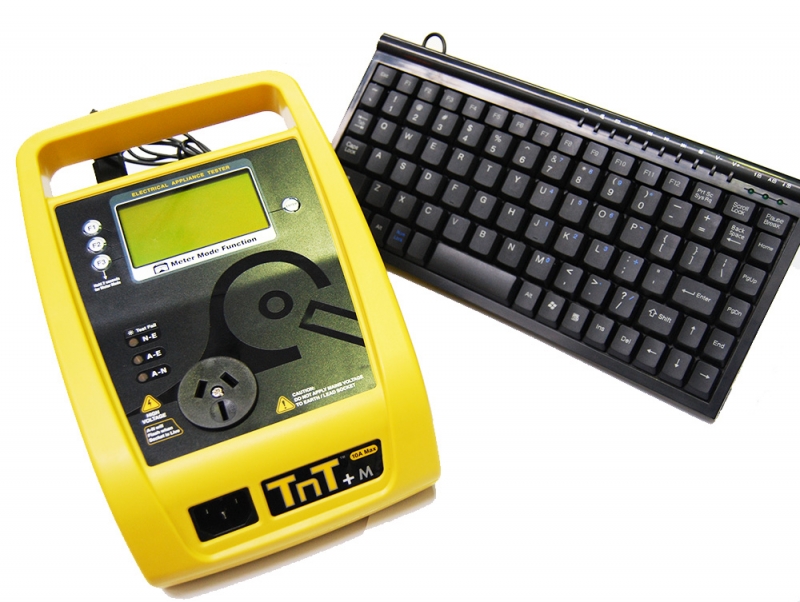

The TNT + M is one of Wavecom's high-end testers that includes downloadable memory and data entry. Its primary feature lies in its ability to store 5000 test records.
$1,589.30
Excl. GST
Quantity:
1300 393 583
If you have any questions about this product, call our customer service or
send us an e-mail.
The Wavecom TNT + M can perform electrical testing on all 240V appliances, along with fixed and portable RCD's.
A major differentiating factor in the TNT + M is its ability to store 5000 test items, with 8 tests per record (40,000 total tests). The TNT + M is also supplied with a free copy of WinPAT's Memory Base Software which will allow for PC connectivity.
Like all the other Gen 4 TNT models, it comes standard with the Meter Mode function which allows you to display volts, amps, true power and reactive power of an individual appliance. It'll also test sensitive electronic equipment which can't be tested using a standard insulation tester.
Features
Storage capacity of 5000 items
Test's fixed and portable RCD's
Unit displays actual test readings in large font
PASS/FAIL indicator
One button testing

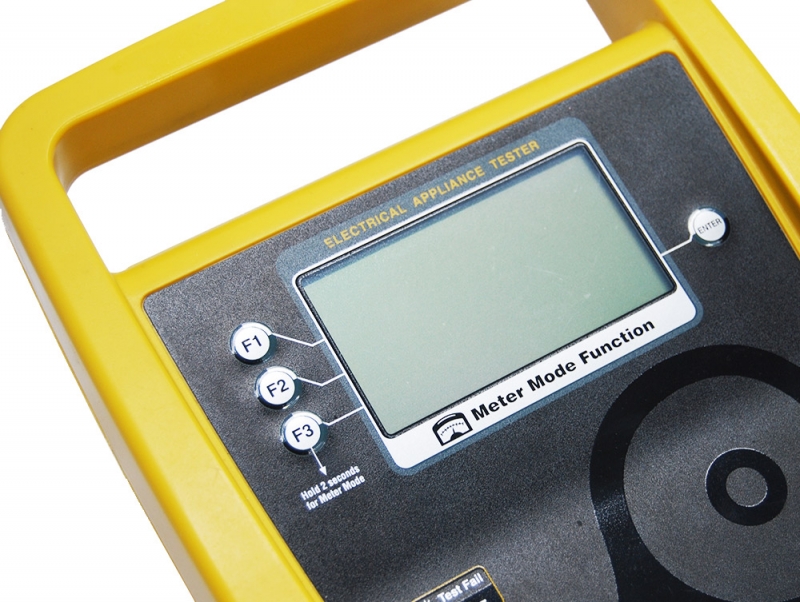

Unique Meter Mode function
Processor firmware factory updateable
Impact resistant and flame retardant casing
Built-in carry handle
Accessories

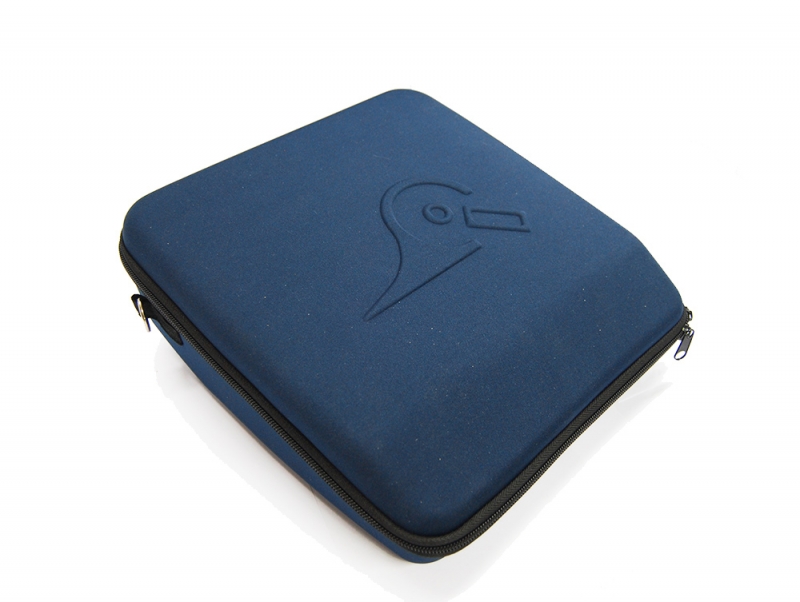

Carry case, 240V Extension lead adaptor, Earth bond lead, Manual, WinPAT's Base software, Keyboard & Calibration Certificate,
Tests Performed
Extension Leads
Leakage Current
250V Insulation
500V Insulation
RCD Testing
Mains Supply Test
Power Measurement
2 Years
1.3kg
230 VAC - 260 VAC. 3W. 50hZ
Case: Impact Resistant, Flame Retartant
Size: 170W x 225 x 110H
Load current max, 10A
500v, 250V Selectable
Circuit continuity test 240VAC @ 2mA
Current 200mA DC
Pass Limit < 1.0Ω
Settable Trip, 2 - 500 mA ± <2.5% of valve
Trip Time, 0 - 300 mS ± <1 mS
Class 1 Pass ≤ 5 MA RMS
Class 2 Pass ≤ 1 MA RMS
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Apparent Power: 0 to 2400VA
Power: 0 to 2400W
CAT III 300V
Internal Fuse Protected 1A
DUT Test Protected At 10A
