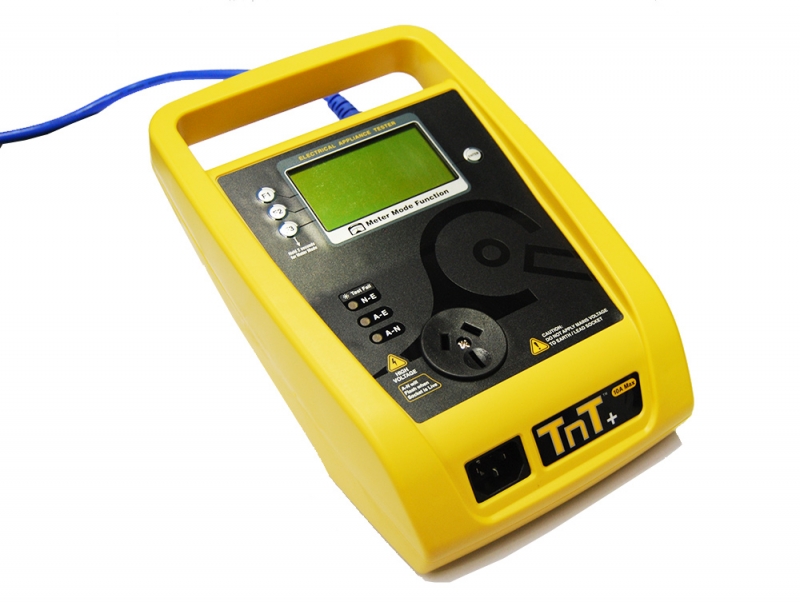

The Wavecom Generation 4 TNT + is considered a slightly higher model than TNT -el. However, it still contains the same simple functionality and ease of use.
With the TNT + model, you'll have the ability to test RCD's, but will require you to purchase an Isolation Transformer. Likewise, you are able to connect your portable appliance tester to your PC or laptop, much makes it easier to log data and to manage re-test dates.
Like all the other Gen 4 TNT models, it comes standard with the Meter Mode function which allows you to display volts, amps, true power and reactive power of an individual appliance. It'll also test sensitive electronic equipment which can't be tested using a standard insulation tester.
Features
Connects to your PC or laptop
Capable of testing RCD's (Isolation Transformer required)
Pass and Fail indicator
Quick one button testing
Comes with WinPAT's software

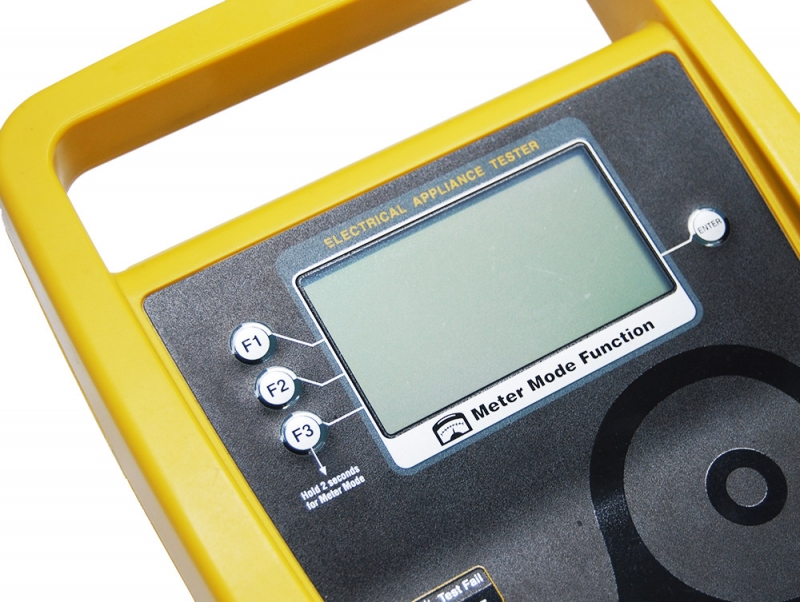

Unique Meter Mode function
Tester displays actual test readings in large fonts
Processor firmware factory updateable
Impact resistant and flame retardant casing
Built-in carry handle
Accessories

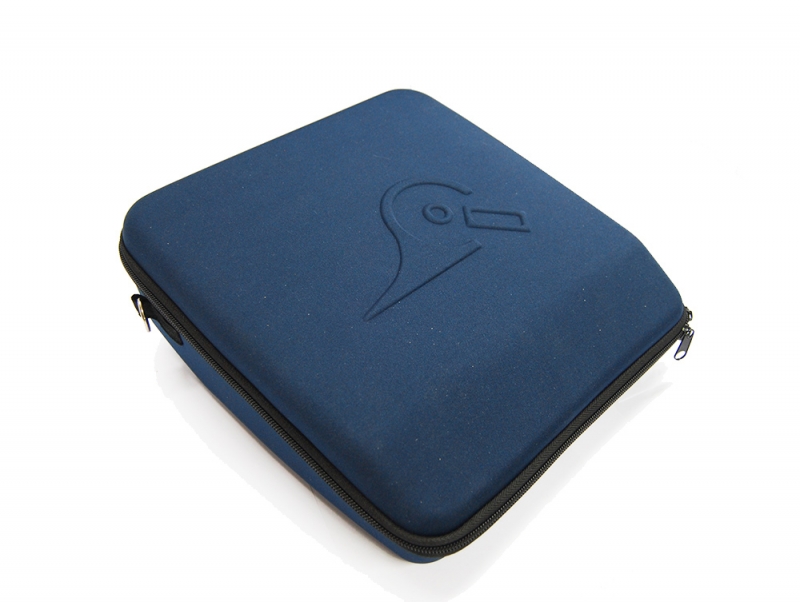

Carry case, 240V Extension lead adaptor, Earth bond lead, Manual, WinPAT's Base software & Calibration Certificate.
Tests Performed
Extension Leads
Leakage Current
250V Insulation
500V Insulation
RCD Testing
1.3kg
Case: Impact Resistant, Flame Retardant
Size: 170W X 225L X 110H
Settable Trip, 2 - 500 MA ± <2.5% Of Valve
Trip Time, 0 - 300 MS ± <1 MS
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Apparent Power: 0 To 2400VA
Power: 0 To 2400W
2 Years
230 VAC - 260 VAC. 3W. 50hZ
240 VAC @ 2 MA
500v *250v Selectable
Pass Limit > 1MΩ
Current: 200 MA DC
Pass Limit < 1.0Ω
Class 1 Pass ≤ 5 MA RMS
Class 2 Pass ≤ 1 MA RMS
CAT III 300V
Internal Fuse Protected 1A
DUT Test Protected at 10A
