The TnP-500 Print Pack is a complete package, tailored to people who test in high volumes. You'll be able to effortlessly print tags on the spot, re-test items using the scanner and log all of your data with premium software.
$3,098.00
Excl. GST
Quantity:
1300 393 583
If you have any questions about this product, call our customer service or
send us an e-mail.
Designed for high-volume testing or for any test and tag business owners, the remarkable TnP Print and Test Pack is the perfect time saving solution.

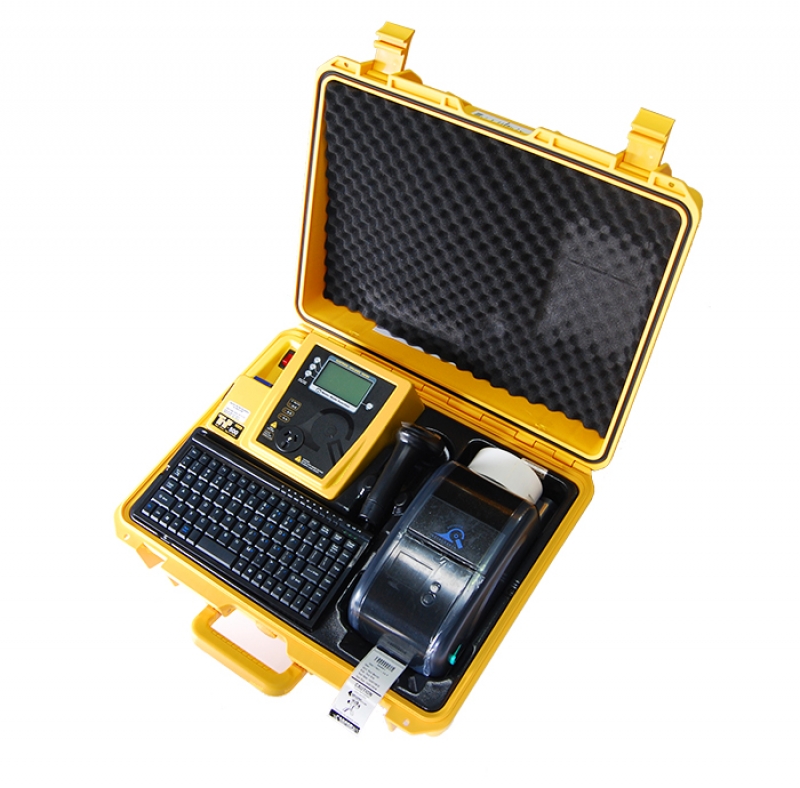

This complete pack is supplied with everything you'll need, so you can effortlessly print tags on the spot and re-test items using the scanner. Using WinPAT's most Premium software, you can then record all of the equipment on your PC and use the mobile memory unit when testing. This means there's no need to have your PC with you onsite when it comes time for re-testing.

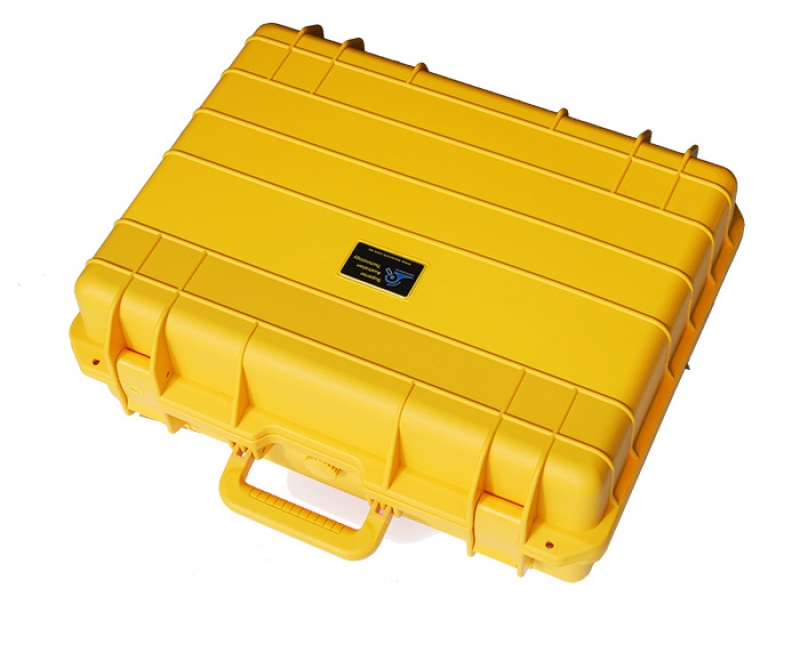

If you're primarily testing onsite or at multiple locations, the compact heavy duty case will make it easy to transport all of your equipment.
The TnP Appliance Tester that comes supplied is one of Wavecom's high-end models that performs all tests required by AS/NZS 3760 and has the ability to store 5000 records.
Features
Storage capacity of 5000 items
Test's fixed and portable RCD's
Unit displays actual test readings in large font
PASS/FAIL indicator
One button testing
Unique Meter Mode function
Processor firmware factory updateable
Accessories
Earth bond lead, 240V Extension lead adaptor, Manual & Calibration Certificate
Circuit Continuity Test 240VAC @ 2mA
Class 1 Pass ≤ 5 MA RMS
Class 2 Pass ≤ 1 MA RMS
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Apparent Power: 0 To 2400VA
Power: 0 To 2400W
1.3kg
Load Current Max, 10A
Settable Trip, 2 - 500 MA ± <2.5% Of Valve
Trip Time, 0 - 300 MS ± <1 MS
Current 200mA DC
Pass Limit < 1.0Ω
500v, 250V Selectable
Case: Impact Resistant, Flame Retartant
Size: 170W X 225L X 110H
230 VAC - 260 VAC. 3W. 50hZ
2 Years
CAT III 300V
Internal Fuse Protected 1A
DUT Test Protected At 10A
