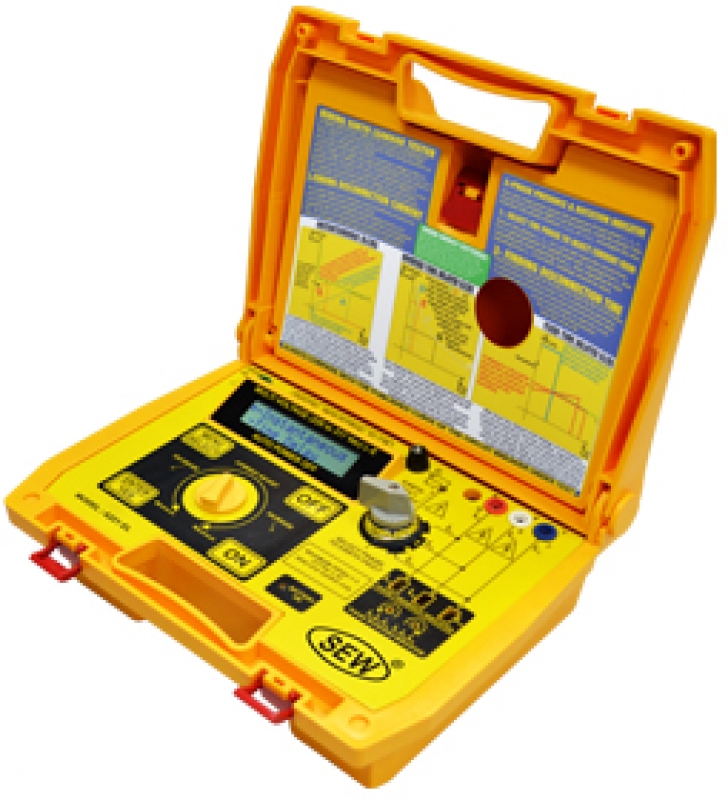

SEW 6221EL 3 Phase RCD Tester
call our customer service or send us an e-mail.
The microprocessor controlled SEW 6221EL is an ideal unit for testing trip current and trip time on both single and 3 phase RCD's. It was designed to have an extremely easy-to-use functionality, as tests consist of simple push button operation and a rotary dial for choosing the RCD current. Once your test is complete, readings will then be displayed on the LCD screen.
An added benefit of using the 6221EL model is that it contains an in-built 3 phase rotation indicator.
Features
- Phase rotation indication
- Phase presence indication
- Microprocessor controlled for super fast results
- Phase to earth voltage measurements
- Phase RCD Test
- Comes in a robust carry case
- Rotary dial to select RCD current
- Tests for disconnection time & disconnection sensitvity
- Push button operation
- Colour coded test leads
Safety Standards
EN 61010-1 CAT III 550V EN 61326-1
-
999mAac / 50Hz-60Hz
-
3850g (batteries included)
-
330(L) × 260(W) × 160(D)mm
-
1.5V "C" × 8 Bat OK Led = Vbat >9V
-
1mA
-
±3% ± 4mA
-
1ms ± 4ms
-
1ms(Max. Time = 99.99s)
-
Yes
-
220Vac to 317Vac
-
0° and 180°
-
Knob
-
0°C to + 40°C
-
-10°C to + 50°C
-
Over Load: 550V(between all terminals)
Over Voltage: Class III - 450V towards ground. -
Nominal Voltage: From 100Vac to 450Vac
Frequency Range: From 10Hz to 400Hz. -
Direction: From 100 to 450Vac.
Frequency Range: From 10Hz to 400Hz.
