Metrel DeltaPAT Complete
More Images
Video
Temporarily unavalable

Metrel DeltaPAT Complete

Metrel
Free Delivery
Dispatched Same Day
100% Money Back Guarantee
The DeltaPAT Complete is a powerful printing pack that will change the way you test and tag. Your Metrel DeltaPAT 3309 tester is connected wirelessly to the Zebra Printer and Android Smart Device, which allows for quick data capture, on-the-spot tag printing and fast testing times.
$3,099.00 Excl. GST
Quantity:
Secure Payment
1300 393 583
If you have any questions about this product, call our customer service or send us an e-mail.

The Metrel DeltaPAT Complete uses Bluetooth technology to connect together your DeltaPAT Appliance Tester, Zebra Printer and Android Smart Device. This means you'll be able to use the Android device as remote control to run your tests.

The Zebra Printer will then print your tag on the spot with the required information and company logo. When it comes time for retesting, there's no need for a scanner as your Smart Device will scan the QR barcode and show all the previous test results instantly.

By using the DeltaPAT Complete to its full capability, it'll offer you the complete printing solution and significantly speed up your entire test and tag process.

Features

  • Bluetooth connectivity between all of the devices
  • Android device can be used to run tests
  • Prints tags on the spot
  • Rechargeable battery for the printer with built-in charging circuit
  • Scan QR codes with your Android device

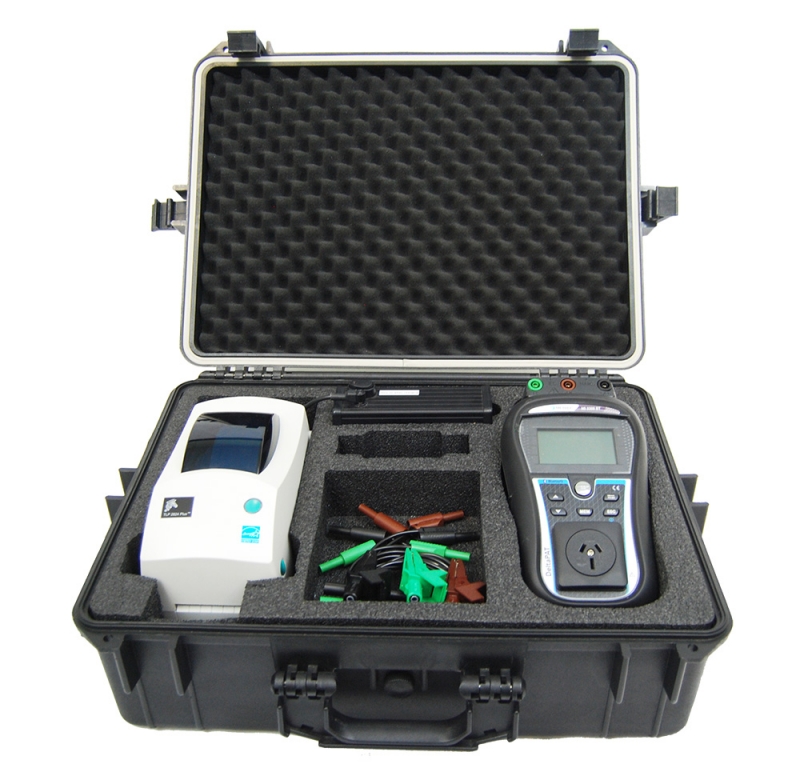

  • All of the components fit into the heavy duty carry case

Package Includes

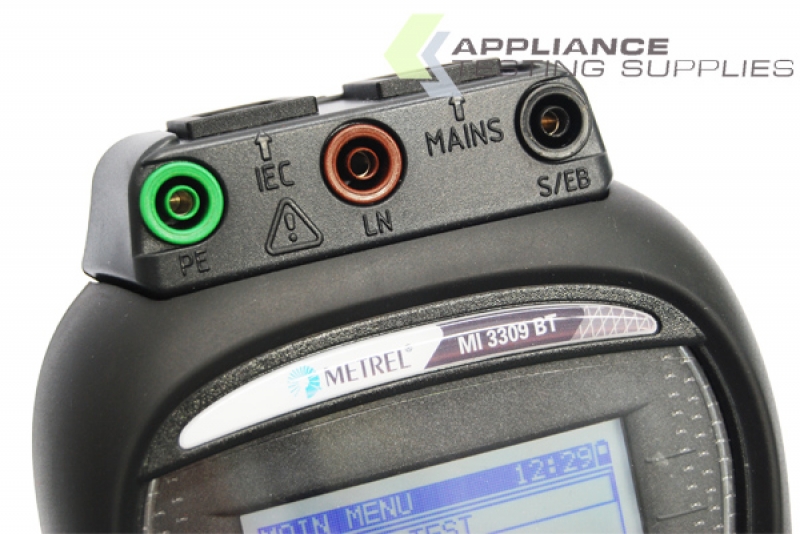

  • Metrel DeltaPAT 3309 BT Appliance Tester
  • Zebra TPL 2824 Printer
  • NIHM Rechargable Printer Battery
  • 1 Roll of 500 labels
  • 1 Roll of 500 Thermal Ribbon
  • Heavy Duty Carry Case with custom insert
  • Android PATlink Software
  • PC PATlink Pro Software
  • Calibration Certificate

Tests Performed

  • Leakage Current Test
  • Extension Leads
  • 250V Insulation
  • 500V Insulation
  • RCD Testing
  • Mains Supply Test
  • Power Measurement



  • Case IP 40/Connectors IP 20
  • Voltage: 230 V AC
    Range: 0.00 KVA ÷ 4.00 KVA
  • Voltage: 230 V AC
    Range: 0.00 MA ÷ 7.0 MA
  • Voltage: 230 V AC
    Range: 0.00 MA ÷ 7.0 MA
  • 200 MA In To 2.00 Ω
    Range: 0.00-1999 Ω
  • Voltage: 250 VDC Or 500 VDC
    Range: 0.00-199.9 MΩ
  • 10mA, 15mA, 30mA
  • <50 V AC
  • Range: 80 ÷ 300 V
  • 2 Years
  • 10 h
  • 14cm X 8cm X 23cm
  • 1.2kg
  • CAT II / 300 V
