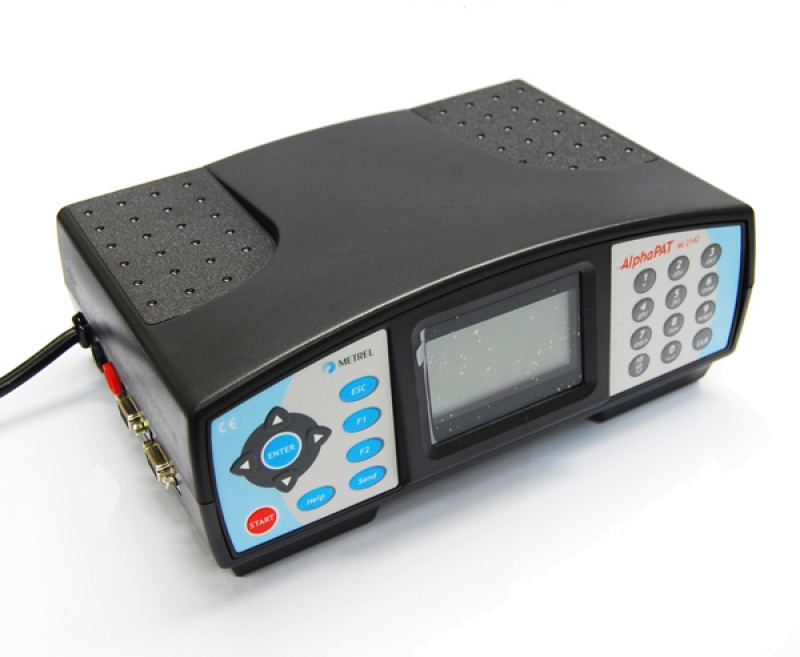

Metrel AlphaPAT

The Metrel AlphaPAT MI2142 was designed for the Australian and New Zealand markets and meets the AS/NZS 3760 standard.

Although it meets the standards, it does provide additional testing features such as Substitute Leakage Current, Touch Leakage Current and low range PE Leakage test.

Features

Custom testing
Load testing
Checks installation supply
PC updateable firmware
3 Phase testing compatible (Clamp Meter required)
SimplyPAT's Version 6 Software compatible

Accessories

Manual, Carry case, Earth bond lead & Calibration Certificate

Tests Performed

Extension Leads
Leakage Current
250V Insulation
500V Insulation
Mains Supply Test

Warranty
1 Year
IEC Test Lead
Open, Short, Crossed @ 50V DC
Power
Range: 0.00 to 3.69kVA
Current
Range: 0.00 to 19.99A
Accuracy: ± 5% + 3 dgt
Differential Leakage Test
Range: 0.00 to 19.99mA
Accuracy: ± 5% + 5 dgt
Insulation Test
Range: 0.00 to 19.99
Accuracy: ± 5% + 5 dgt
Earth Screen Test
Range: 0.00 to 19.99 @ 100mA to 20mA
Accuracy: ± 5% + 5 dgt
Earth Bond Test
Range: 0.00 to 19.99 @ 10 or 25 A AC
Accuracy: ± 5% + 5 dgt
RS 232 Interface
Baud Rate 9600
Memory
4Mbit Data Flash Memory
Clamp Current Test
Range: 0.00 to 99.9 mA
Accuracy: ± 10% + 5 dgt
Range: 100 mA to 19.99 A
Accuracy: ± 5%
