Gen 4 TNT +XM
More Images
Temporarily unavalable

Wavecom Gen 4 TNT +XM

Wavecom
Free Delivery
Dispatched Same Day
100% Money Back Guarantee

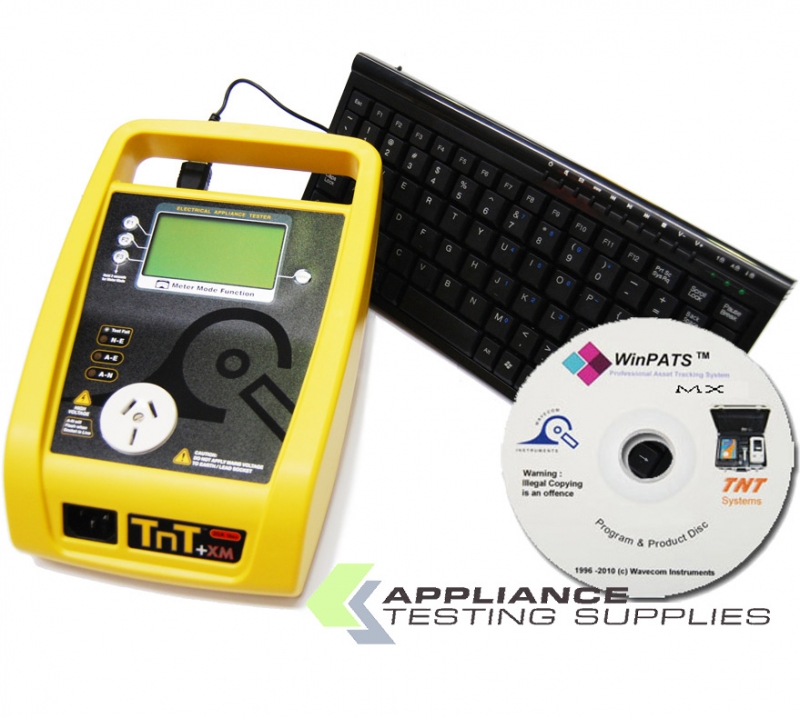

The TNT + XM is Wavecom's top of the range tester that gives the user the ability to test up to 20A equipment and store 5000 test records.
$2,172.35 Excl. GST
Quantity:
Secure Payment
1300 393 583
If you have any questions about this product, call our customer service or send us an e-mail.

The Wavecom TNT + XM can perform electrical testing on all 240V appliances, along with fixed and portable RCD's.

Similar to the TNT + M, it comes supplied with the WinPAT's Base software for PC connectivity and is capable of storing 5000 test records.

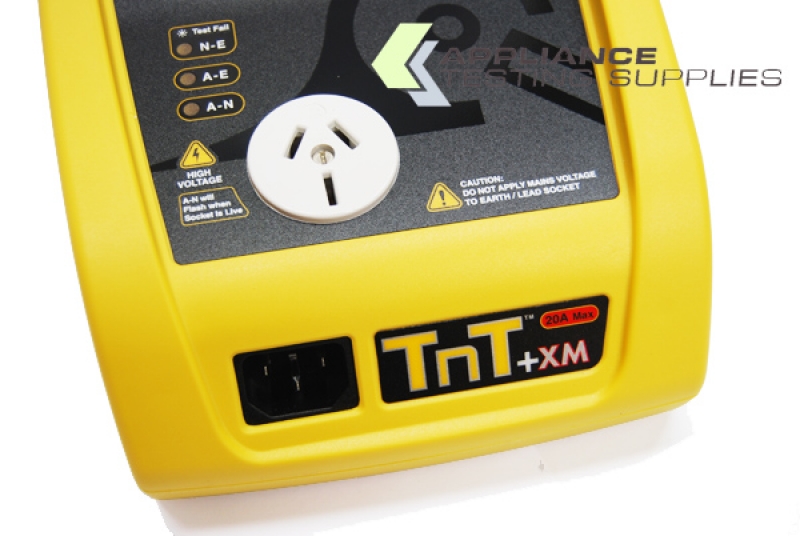

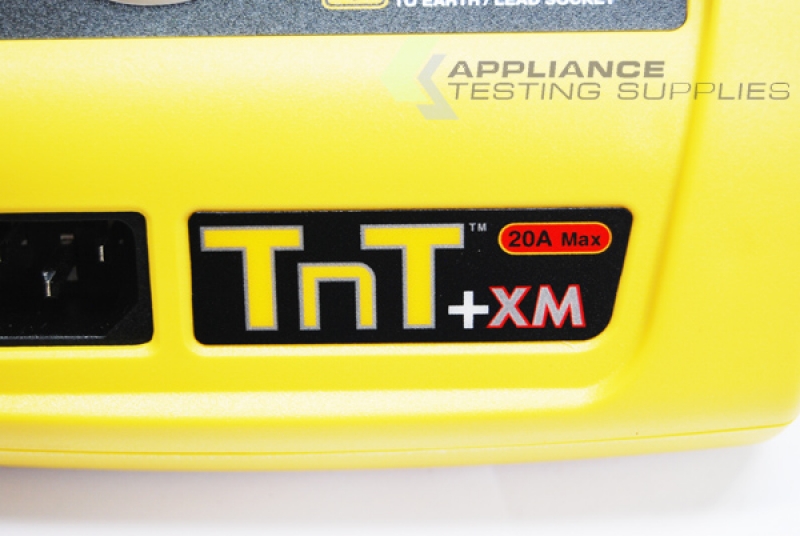

What sets this tester apart from the other Wavecom Generation 4 testers is its ability to test 20amp equipment.

Features

  • 20amp operation
  • Storage capacity of 5000 items
  • Test's fixed and portable RCD's
  • Unit displays actual test readings in large font
  • PASS/FAIL indicator
  • One button testing
  • Unique Meter Mode function
  • Processor firmware factory updateable
  • Impact resistant and flame retardant casing
  • Built-in carry handle

Accessories

240V Extension lead adaptor, Earth bond lead, Calibration certificate, Manual, WinPAT's Base software & Keyboard

Tests Performed

  • Extension Leads
  • Leakage Current
  • 250V Insulation
  • 500V Insulation
  • RCD Testing
  • Mains Supply Test
  • Power Measurement
  • Case: Impact Resistant, Flame Retardant
    Size: 170W X 225L X 110H
  • 1.4kg
  • 230 VAC - 260 VAC. 3W. 50hZ
  • 500v *250v Selectable
  • Settable Trip Current, 2 - 500 mA± <2.5%
    Trip Time, 0 - 300 mS ± <1 mS
  • Class 1 Pass ≤ 5 MA RMS
    Class 2 Pass ≤ 1 MA RMS
  • Current: 200 MA DC
    Pass Limit < 1.0Ω
  • Voltage: 200 To 265VAC
    Load Current: 0.0 To 20Amp
  • Voltage: 200 To 265VAC
    Load Current: 0.0 To 10Amp
    Apparent Power: 0 to 2400VA
    Power: 0 to 2400W
  • 240 VAC @ 2 MA
  • Load Current Max: 20A
  • CAT III 300V
    Internal Fuse Protected 1A
    DUT Test Protected at 20A
  • 2 Years
