Gen 4 TNT -el
More Images
Video

Wavecom Gen 4 TNT -el

Wavecom
Free Delivery
Dispatched Same Day
100% Money Back Guarantee
The entry-level TNT -el is one of Wavecom's newly updated Generation 4 portable appliance testers. Running tests with the TNT -el is very simple process and it has the added capability of conducting Leakage tests.
$738.00 Excl. GST
Quantity:
Secure Payment
1300 393 583
If you have any questions about this product, call our customer service or send us an e-mail.

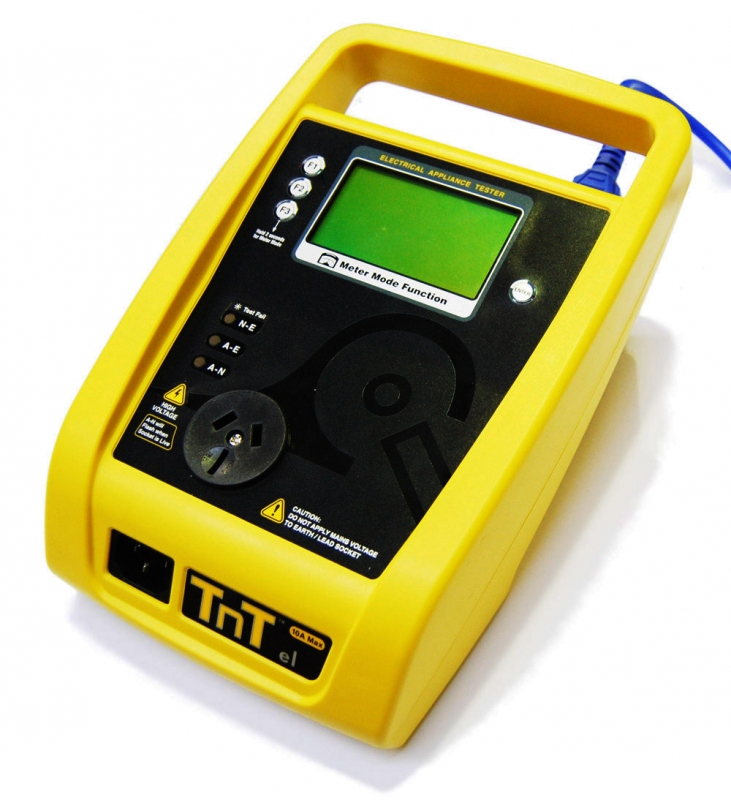

The Wavecom G4 TNT -el is an Australian made unit that's been designed for people that are after a simple and easy to operate portable appliance tester.

Running tests with TNT -el is as a very straightforward process, as tests are conducted with just the push of a button. A major benefit of using this tester is that you'll be able to run Leakage tests. This is very much a rarity for an appliance tester that's considered 'entry-level'.

Like all the other Gen 4 TNT models, it comes standard with the Meter Mode function which allows you to display volts, amps, true power and reactive power of an individual appliance.The TNT -el will also test sensitive electronic equipment which can't be tested using a standard insulation tester.

Features

  • Tester displays actual test readings in large fonts
  • Quick one button testing
  • Unique Meter Mode function
  • Processor firmware factory updateable
  • An indicator for PASS or FAIL items
  • Impact resistant and flame retardant casing
  • Built-in carry handle for easy transportation

Accessories

Carry case, 240V Extension lead adaptor, Earth bond lead, Manual & Calibration Certificate

Tests Performed

  • Extension Leads
  • Leakage Current
  • 250V Insulation
  • 500V Insulation
  • Mains Supply Test
  • Power Measurement



  • Case: Impact Resistant, Flame Retardant
    Size: 170W x 225L x 110H
  • 1.3kg
  • 230 VAC - 260 VAC. 3W. 50hZ
  • 240 VAC @ 2 mA
  • 500v *250v Selectable
    Pass Limit > 1MΩ
  • Current: 200 mA DC
    Pass Limit < 1.0Ω
  • Class 1 Pass ≤ 5 mA RMS
    Class 2 Pass ≤ 1 mA RMS
  • Voltage: 200 to 265VAC
    Load Current: 0.0 to 10Amp
  • Voltage: 200 to 265VAC
    Load Current: 0.0 to 10Amp
    Apparent Power: 0 to 2400VA
    Power: 0 to 2400W
  • CAT III 300V
    Internal Fuse Protected 1A
  • 2 Years
